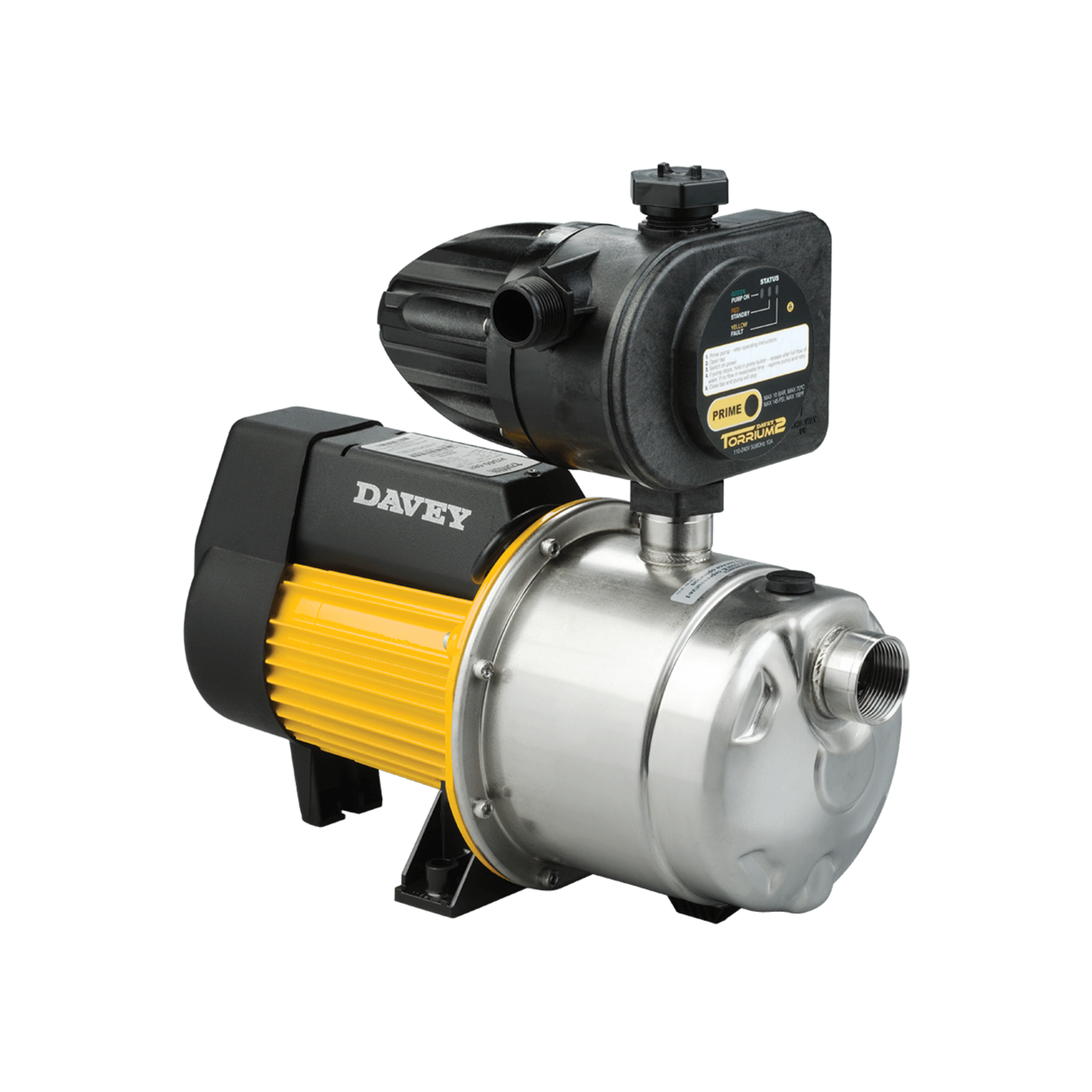

Davey HS50-06T Home Pressure System

The complete HS Pressure System is compact and quiet providing for:

• Easy installation, especially where space is at a premium
• Non-intrusive operation, for consumer enjoyment
• More pressure in home outlets
• Choice of performance options to suit most homes
• Quieter household environment
• Improved waterway clearances to reduce impeller blockages

✓ Medium to large single or multi-storey homes
✓ High-pressure household water supply requirements
✓ Homes with multiple bathrooms and outlets
✓ Pressure boosting for low-pressure mains
✓ Irrigation and garden watering systems
✓ Water transfer applications
✓ Washing systems and outdoor cleaning
✓ Rainwater harvesting systems
✓ Properties requiring consistent high pressure
✓ Multi-level homes with elevation challenges

Model: HS50-06T
Motor Power: 600W (0.6kW)
Maximum Flow Rate: 80 litres/minute
Maximum Head: 47 metres
Pressure: 470 kPa
Stages: 4-stage horizontal multistage
Inlet Size: 1.25" Female (32mm)
Outlet Size: 1" Male (25mm)
Voltage: 220-240V, 50Hz Single Phase
Motor Type: TEFC (Totally Enclosed Fan Cooled)
IP Rating: IP55
Insulation Class: Class F
Ambient Temperature Rating: 55°C
Maximum Water Temperature: 80°C
Starting Method: Permanent Split Capacitor
Pump Body: 304 Stainless Steel
Impeller: Glass-filled polycarbonate
Mechanical Seal: Carbon/synthetic
Controller: Torrium2 intelligent pressure controller
Cut-in Pressure: 80% of shut-off pressure (adaptive)
Low Flow Cut-off: ~1 lpm
Thermal Protection: Automatic resetting thermal overload
Power Lead: 2 metres with 3-pin Australian plug
Certifications: AS/NZS 4020 drinking water compliance, ISO 9001:2000
Warranty: 24 months
Weight: 13kg
Dimensions: 700mm x 240mm x 280mm
Made in: Australia
