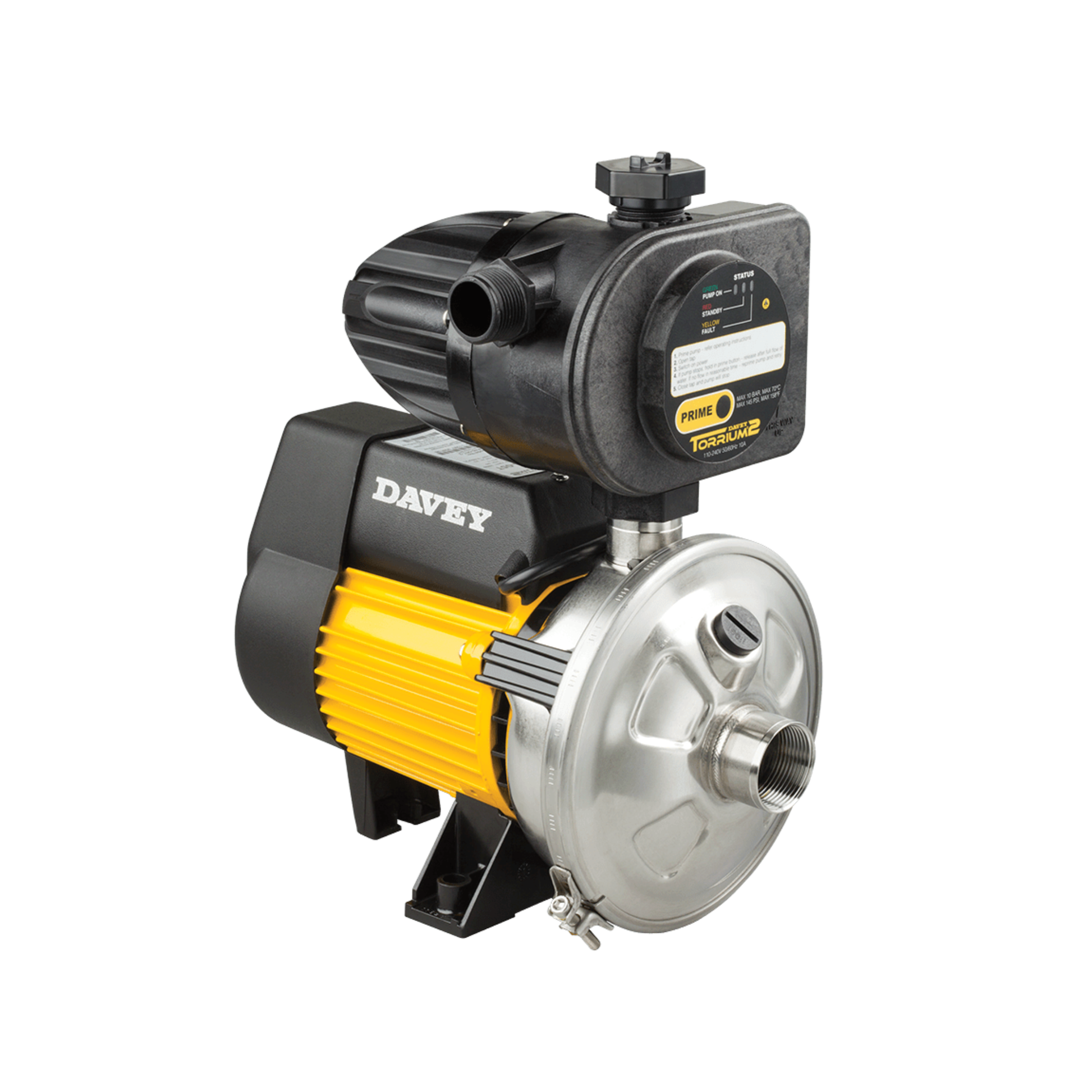

Davey HP45-05T Pressure Pump with Torrium 2

• Constant pressure – Torrium² controller ensures smooth water delivery and a strong shower every time.
• Powerful performance – Up to 70L/min flow and 33 m max head, ideal for medium to large homes
• Durable stainless steel pump – Reliable twin-stage impellers and corrosion-resistant construction.
• Safe for drinking water – All wetted parts are made from corrosion-resistant, potable-safe materials.
• Smart protection – Dry run protection, thermal overload reset, and adaptive technology extend pump life.
• Quiet & compact – Designed for easy installation where space is tight.

✓ Medium to large single or multi-storey homes
✓ Household water supply from tanks or wells
✓ Irrigation and garden watering systems
✓ Water transfer applications
✓ Pressure boosting for low-pressure mains
✓ Washing systems and outdoor cleaning
✓ Properties with space constraints
✓ Homes requiring consistent shower pressure
✓ Rainwater harvesting systems
✓ Applications requiring quiet operation

Model: HP45-05T
Motor Power: 550W (0.55kW)
Maximum Flow Rate: 70 litres/minute
Maximum Head: 33 metres
Pressure: 330 kPa
Inlet Size: 1.25" (32mm)
Outlet Size: 1" (25mm)
Voltage: 220-240V, 50Hz Single Phase
Motor Type: TEFC (Totally Enclosed Fan Cooled)
IP Rating: IP55
Insulation Class: Class F
Ambient Temperature Rating: 55°C
Maximum Water Temperature: 80°C
Starting Method: Permanent Split Capacitor
Pump Body: 304 Stainless Steel
Impeller: Glass-filled polycarbonate
Mechanical Seal: Carbon/synthetic
Controller: Torrium2 intelligent pressure controller
Cut-in Pressure: 80% of shut-off pressure (adaptive)
Low Flow Cut-off: ~1 lpm
Thermal Protection: Automatic resetting thermal overload
Power Lead: 2 metres with 3-pin Australian plug
Certifications: AS/NZS 4020 drinking water compliance, ISO 9001:2000
Warranty: 24 months
Weight: 10kg
Dimensions: 520mm x 220mm x 300mm
Made in: Australia

Download HP pump series data sheet here
Download the Torrium2 controller data sheet here
Download the installation and operation guide here
