Onga Multi Evo OME360P multi-stage pump with press control

Onga Multi Evo OME360P multi-stage pump with press control

Max head 73m | Max 80lpm
Shipping calculated at checkout.
In store now — Pakenham & Yarragon
Shop in store
Onga Multi Evo OME360P multi-stage pump with press control
Onga Multi Evo OME360P multi-stage pump with press control
In store now — Pakenham & Yarragon
Shop in store
  • Onga
  • Made in Italy
  • 2 years warranty

View full details

Multi Evo is a self-priming horizontal multi-stage centrifugal pump. The innovative, high-efficiency hydraulic system is coupled to our latest generation motor. Available in various models and all are certified for use with drinking water - AS/NZ 4020.

Product brochure Installation & operation
  • Robust design
  • Quiet operation
  • Wide range of performance levels to suit various applications
  • Self-priming with up to 8m suction lift
  • Latest hydraulic design offers great reliability and efficiency
  • D.R.O.P. system for pump protection​
  • Domestic pressure system (with Presscontrol or pressure switch kit)
  • Water transfer
  • Irrigation
  • Garden water supply

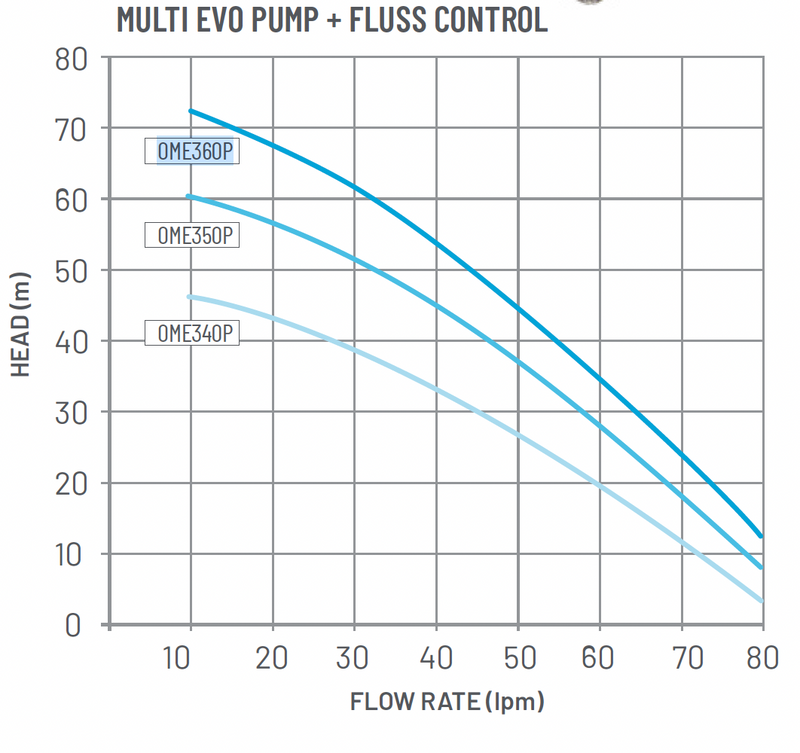

Performance

  • Max head: 73m
  • Max flow rate: 80lpm (4.8 m³/h)
  • Nominal power (P2): 1.2 HP / 0.9 kW
  • Absorbed power (P1): 1.68 HP / 1.25 kW
  • Voltage: 1~ 230V
  • Current: 5.7A
  • Capacitor: 20 µF
  • Outlet connection: 1" DNA / 1" DNM
  • Outlet height with Fluss Control: 408mm
  • Weight: 10.8 kg
  • Robust design
  • Quiet operation
  • Wide range of performance levels to suit various applications
  • Self-priming with up to 8m suction lift
  • Latest hydraulic design offers great reliability and efficiency
  • D.R.O.P. system for pump protection​
  • Domestic pressure system (with Presscontrol or pressure switch kit)
  • Water transfer
  • Irrigation
  • Garden water supply

Performance

  • Max head: 73m
  • Max flow rate: 80lpm (4.8 m³/h)
  • Nominal power (P2): 1.2 HP / 0.9 kW
  • Absorbed power (P1): 1.68 HP / 1.25 kW
  • Voltage: 1~ 230V
  • Current: 5.7A
  • Capacitor: 20 µF
  • Outlet connection: 1" DNA / 1" DNM
  • Outlet height with Fluss Control: 408mm
  • Weight: 10.8 kg
