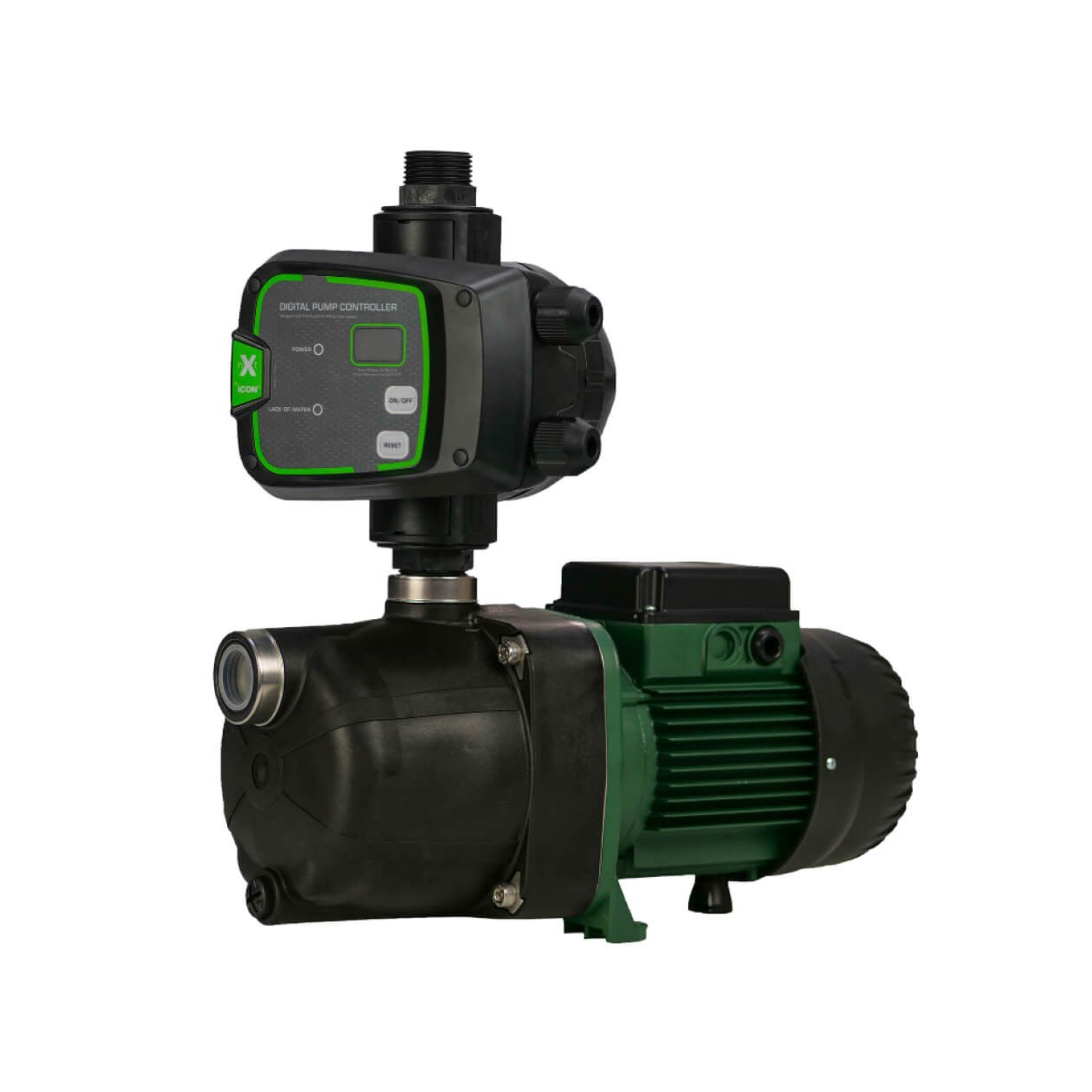

DAB Jetcom62NXT Pressure Pump with NxT Controller

• Fully automatic: starts and stops based on water demand with real time digital pressure monitoring, no manual operation needed
• Low maintenance: carbon/ceramic mechanical seal for reliable long-term operation
• Comprehensive protection: built-in dry run, thermal and current overload protection to prevent pump damage
• Deep suction capability: self-priming up to 8 metres deep, ideal for tanks, wells and rainwater systems
• Approved for drinking water: certified to AS/NZS 4020 and Good Design Award winner for the controller design

Download product overview sheet here

Home type

• Small house, unit or granny flat
• Single and multi-storey homes

Applications

• Household water supply - small dwellings
• Light garden irrigation
• Water transfer
• Washing systems
• Pressure boosting

• Output power (kw): 0.44kw p2
• Max. head [m]: 42m
• Max. flow l/min: 45 l/min
• Max pressure - pump: 6 bar
• Max pressure - control: 10 bar
• Liquid temperature: 2 - 35 deg c
• Motor: Asynchronous tefc
• Motor insulation: F class insulation
• Motor protection: In-built thermal overload
• Protection class: Ip44. Terminal board i.p.55
• Rated voltage: 220 - 240v 1ph 50 hz
• Rated current: 3.12a
• Capacitor: 10uf 450v
• Power cable: 1.5m long 10 amp rated h05 flex
• 10 amp 3 pin plug
• Pump body: Technopolymer a
• Internals: Technopolymer a
• Mechanical seal: Carbon/ceramic
• Automatic operation: Yes: bianco nxt core
• Package dimension: L470 x w240 x h240mm
• Gross weight (kg): 7.5kg pump, 1.6kg controller

Download data sheet 1 here
Download data sheet 2 here
Download user manual here
