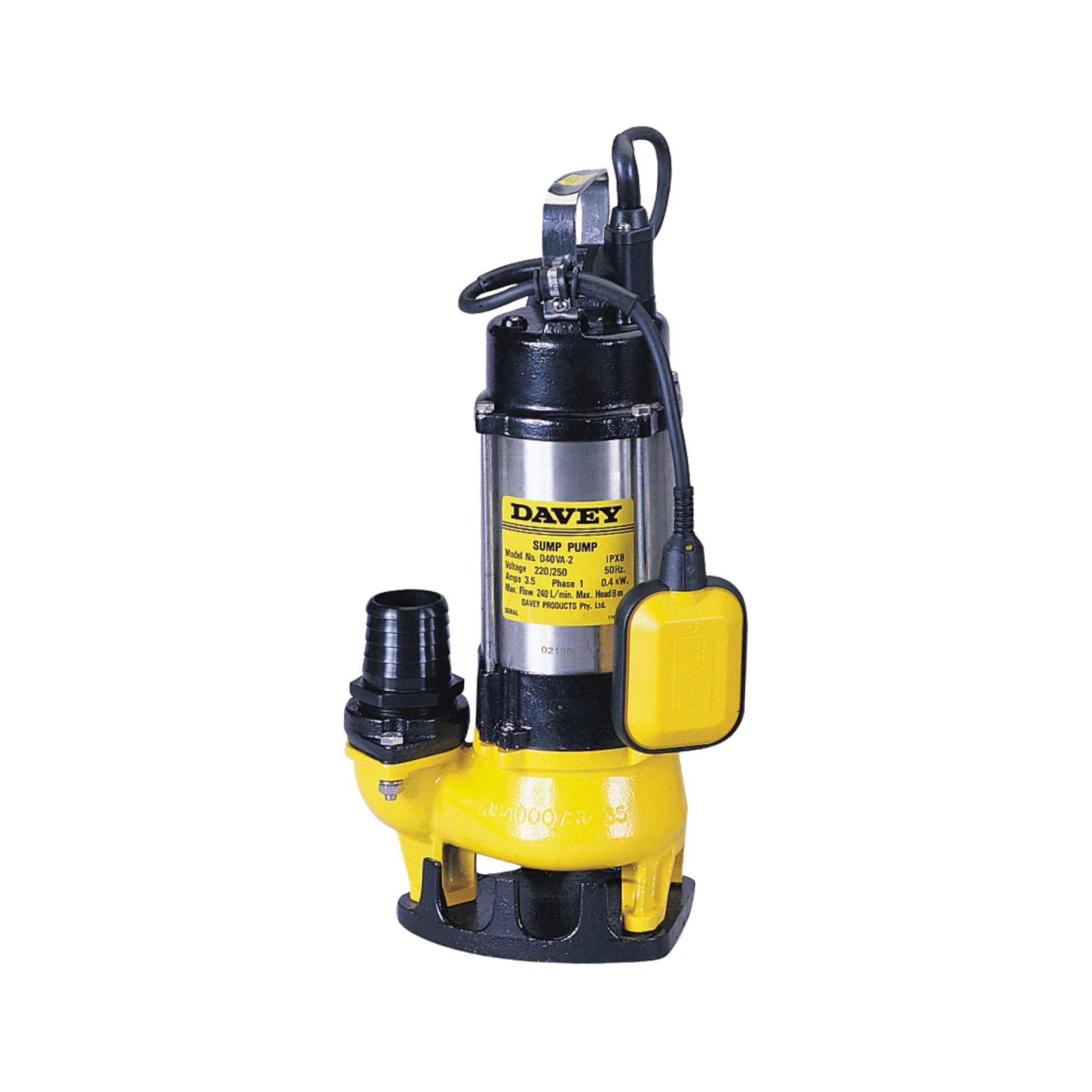

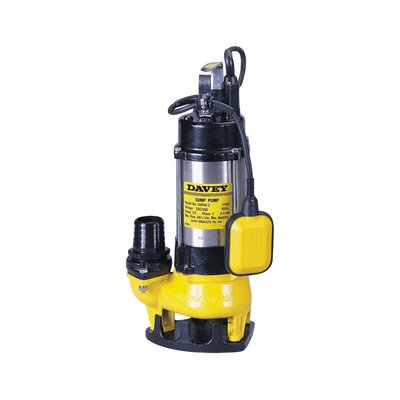

Davey D40VA Vortex Sump Pump

• Open impeller centrifugal design reduces blockage susceptibility
• Integrated float switch for automatic operation
• Corrosion-resistant 304 stainless steel motor shell, strainer, handle, and fasteners
• Cast iron pump body, motor top, and impeller for durability
• Automatic resetting thermal overload protection
• Handles soft solids up to 10mm diameter
• Carbon/ceramic mechanical seal for reliable operation
• 10-metre HO7RN-F oil-resistant power cable
• Compact submersible design
• Attractive, long-lasting appearance
• Easy installation with handle for positioning

✓ Sump emptying and dewatering
✓ Basement, cellar, and garage water removal
✓ Septic water disposal
✓ Water transfer applications
✓ Pumping neutral factory waste water
✓ Dewatering ditches, pits, and ponds
✓ Storm water management
✓ Decorative water features
✓ Grey water applications
✓ General water removal tasks

• Model: D40VA
• Motor Power: 400W (0.4kW)
• Maximum Flow Rate: 240 litres/minute
• Maximum Head: 7.5 metres
• Maximum Submergence: 12 metres
• Outlet Size: 2" Female BSP (50mm)
• Maximum Operating Temperature: 50°C
• Maximum Soft Solid Diameter: 35mm O.D.
• Voltage: 220–240V, 50Hz Single Phase
• Starting Current: 10.5 amps
• Running Current: 3.7 amps
• Cable Length: 10 metres HO7RN-F oil-resistant, with 3-pin power plug
• Float Switch: Automatic operation included
• Thermal Protection: Automatic resetting thermal overload
• Pump Design: Semi-vortex, open impeller, centrifugal
• Construction: Cast iron pump casing, polycarbonate impeller, 304 stainless steel motor shell, shaft, strainer and fasteners
• Mechanical Seal: Double mechanical shaft seal in oil bath — silicon carbide/ceramic (pump end), carbon/ceramic (motor end)
• Suitable Fluids: Clean or grey water of neutral pH, up to 10% small soft solids or 1% fine solids
• Warranty: 2 years (24 months)
• Net Weight: 11kg
• Dimensions (mm): A 440 / B 205 / C 150 / D 130 / F 360
