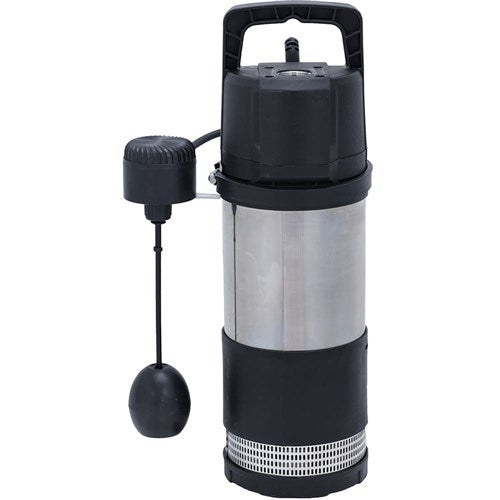

Bianco BIA-AUTOSUB automatic submersible pump

• Compact
• Automatic on/off
• Easy to use
• Dry-run protection
• Intelligent controller
• Water cooled motor

• Household water supply
• Gardening
• Drinking Water

• Rated Power: 750W
• Max Flow: 100 L/min (6 m³/h)
• Max Head: 45m
• Motor Protection Level: Class F
• Protection Class: IPX8
• Working Temperature: -5° – 40°C
• Liquid Temperature: 0° – 35°C
• Max Diving Depth: 7m
• Max Diameter of Particle: 1mm
• Motor: Heavy copper winding
• Rated Voltage: 220 – 240V
• Rated Current: 5.3A @ 230V
• Power Cable Type: H07RN-F
• Length of Power Cable: 10m
• Impellers: 4
• Outlet: 1" BSPF
• Automation Function: iSENSOR Auto Control + Fixed Arm Float Switch
• Cut-in Pressure: 2.5 bar

Download data sheet here
