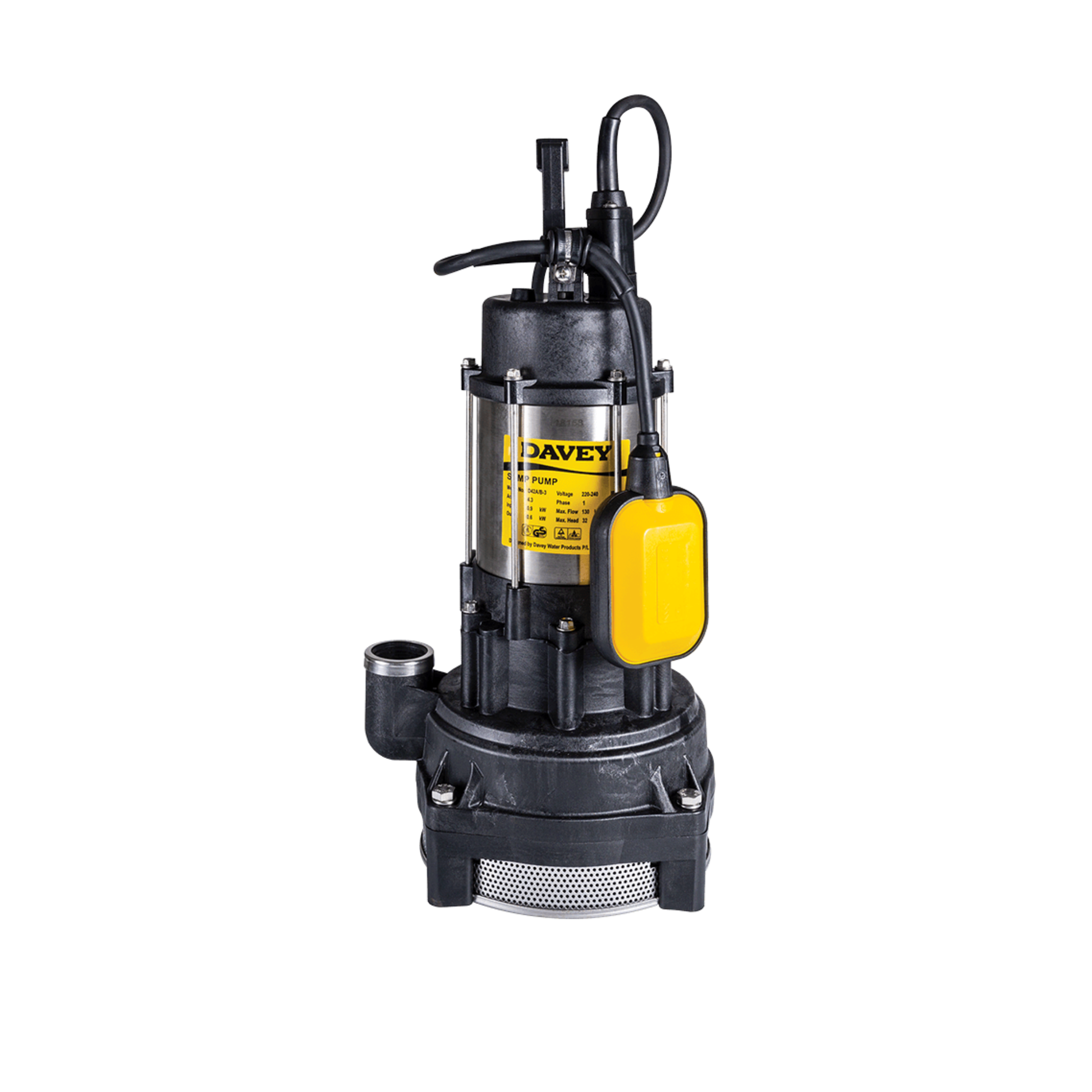

Davey D42A/B high pressure drainage sump pump

• Integrated float switch for automatic operation
• Multi-stage 3-impeller centrifugal design for efficient high-pressure pumping
• Corrosion-resistant 304 stainless steel shaft, motor shell, and fasteners
• Built-in automatic thermal overload protection
• 20-metre cable option available for deeper installations
• Compact submersible design for easy installation

• Rainwater tank systems and harvesting
• Lawn and garden irrigation from rainwater
• Sump emptying to higher elevations
• Treated effluent disposal systems
• Water transfer from wells and reservoirs
• Clean water applications requiring high pressure
• Automatic dewatering application
• Residential water supply from tanks
• Non-potable water distribution
• Agricultural watering systems

Model: D42A/B
Motor Power: 0.6kW output (1.0kW input)
Voltage: 220-240V, 50Hz Single Phase
Maximum Flow Rate: 120-140 lpm
Maximum Total Head: 32 metres
Maximum Submergence: 12 metres
Maximum Operating Temperature: 40°C
Minimum Soft Solids: 1.9mm O.D.
Outlet Size: 1" Female
Motor Speed: 2-pole, 2850 RPM
Starting Current: 14 amps
Running Current: 4.3 amps
Insulation Class: Class F
IP Rating: X8 (submersible)
Starting Method: P.S.C (Permanent Split Capacitor)
Cable Length: 10 metres standard (20m option available)
Cable Type: HO7RNF oil-resistant with 3-pin power plug
Construction: 304 stainless steel shaft, motor shell, fasteners
Seal Type: Double mechanical seal (motor oil bath + pump seal)
Float Switch: Automatic operation included
Thermal Protection: Automatic resetting thermal overload
Warranty: 24 months
Country of Origin: Australian designed
