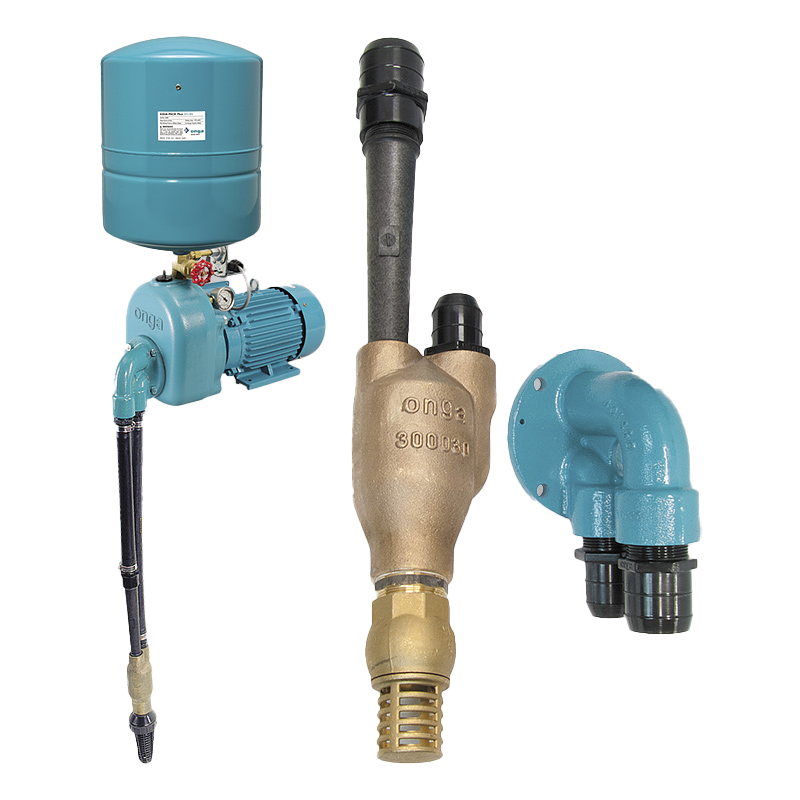

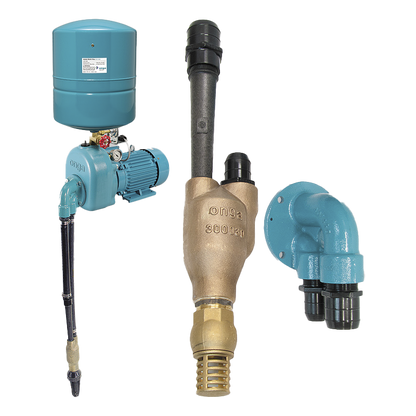

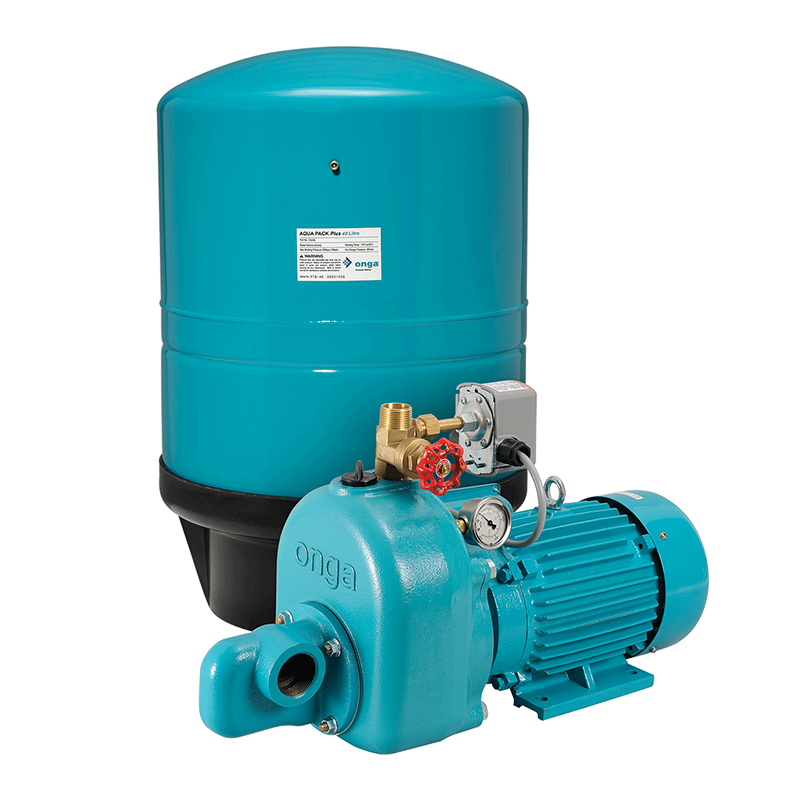

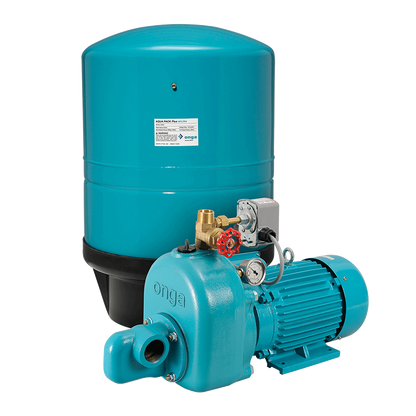

Onga OJ800 Farmmaster Jet Pump

• Injectors to suit large range of applications
• Offset combinations available
• No moving parts down bore
• Shallow well lifts to 7.6 m
• Deep well lifts to 49 m
• Manual or automatic system
• Max. head - 123 m.
• Max. flow - 255 lpm​

• For domestic, industrial or rural use as a manual or an automatic pressure system
• Stock watering
• Irrigation
• Water transfer.

Options of a large range of water sources including tanks, bores, dams, creeks and rivers thanks to various injector combinations.

Performance

• Max head: 123m
• Max flow rate: 255 lpm
• Shallow well lift: up to 7.6m
• Deep well lift: up to 49m
• Warranty: 2 years

Electrical (1-phase)

• Type: 1-phase
• Voltage: 230/460V (±10%)
• Frequency: 50Hz
• Motor rating (P1): 3.6 kW
• Motor rating (P2): 2.4 kW
• Speed: 2900 RPM
• Current: 14/7A
• Locked rotor current: 76A
• Motor protection: Auto
• Insulation class: B
• IP rating: 44
• Power supply lead: 15A

Connections

• Inlet: 1½" BSP (female)
• Pump outlet: 1" BSP (female)
• Pressure kit outlet: 1" BSP (female)

Dimensions & Weight (1-phase)

• Dimensions: 640 × 220 × 350mm
• Weight: 50 kg

Operating Conditions

• Fluid: Clean water only (no solids or fibres)
• Maximum water temperature: 55°C
• Minimum water temperature: 1°C
• Maximum ambient temperature: 40°C

Included in Box

• OJ800 pump and motor
• Pressure switch (fitted)
• Pressure gauge
