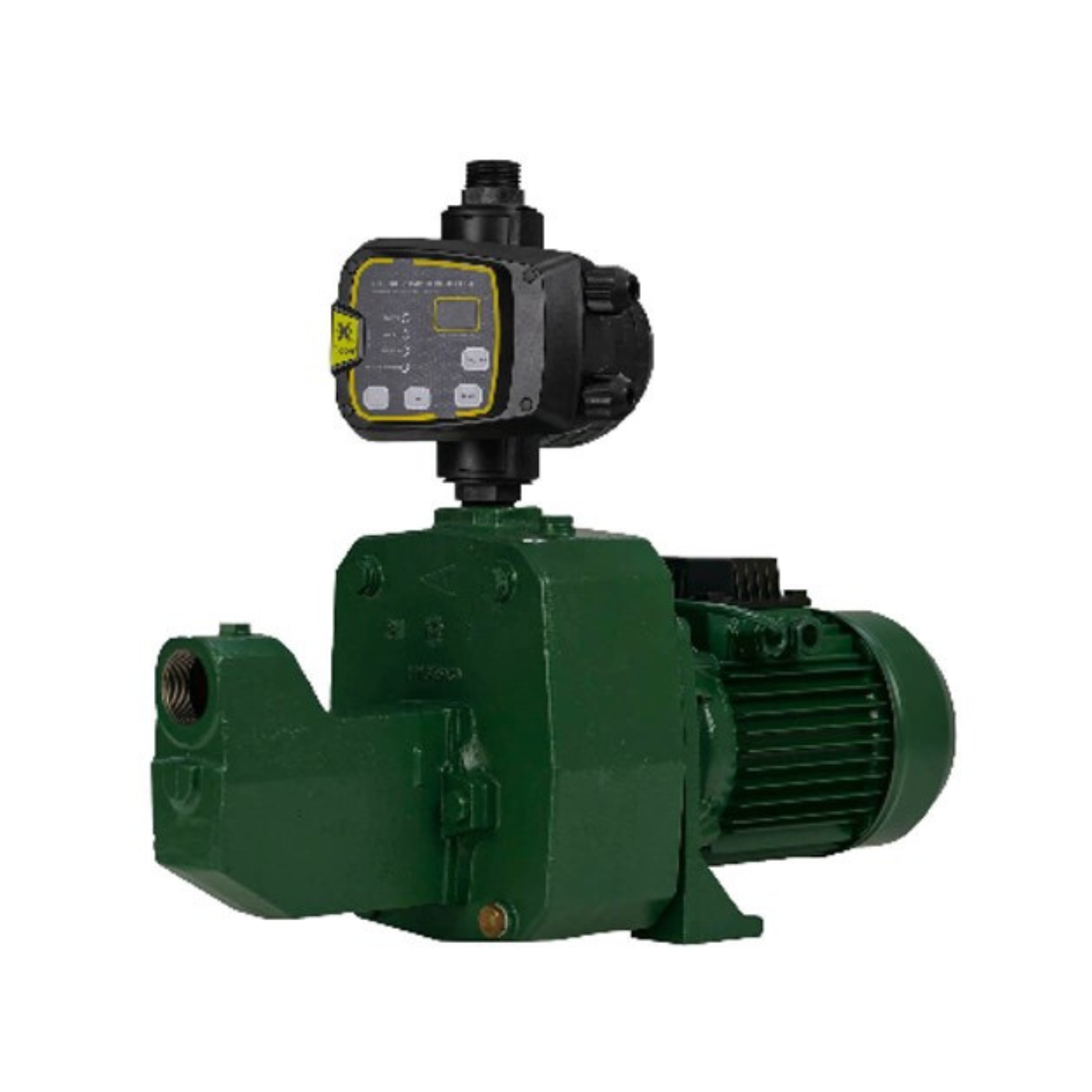

DAB 251NXTP Pro Shallow Well Pressure Pump with nXt PRO Pump Controller

DAB 251NXTP Pro Shallow Well Pressure Pump with nXt PRO Pump Controller

120LPM 62M Head
$1,995.00
$1,995.00
Sale Sold out
Shipping calculated at checkout.
In store now — Pakenham & Yarragon
Shop in store
DAB 251NXTP Pro Shallow Well Pressure Pump with nXt PRO Pump Controller
DAB 251NXTP Pro Shallow Well Pressure Pump with nXt PRO Pump Controller
In store now — Pakenham & Yarragon
Shop in store
  • DAB
  • 2 year warranty

View full details

DAB iCON Powered Pressure System

Ideal for medium to large homes. Suitable for high density urban applications.

1.85kW, 2.5hp, 240V, max hd 62m, max flow 120L/m, 12 taps. Ports 1-1/4” BSPF In, 1” BSPM Out. Controller with fully adjustable cut in pressure 0.5 to 6 bar.

This pump includes the Bianco iCON nXt PRO series of pump controller.

The nXt PRO Controller is designed and tested in Australia to ensure operation in the toughest of environments, combining innovative technology with robust proven architecture to guarantee constant supply of pressurised water when and where you need it the most.

Controller Features

  • Digital display gives you a real time indication of system pressure
  • Anti-cycle Protection
  • Dry run protection with auto restart function that tests for water availability every 24hrs
  • Anti-seize function if pump has not operated for last 24 hours
  • Controller automatically restarts pump after a power failure
  • Easy assembly and removal using push-n-connect fitting with U clip
  • Complies to AS/NZ 4020 drinking water standard
  • Over pressure protection turns pump off when 10 bar is reached
  • Overload protection
Controller Modes

Two operational modes:

  • Mode One - Adjustable cut in pressure setting.

    Controller stops pump when flow drops.

  • Mode Two - Adjustable cut in and cut out pressure.

    Shut down governed by pressure. Requires pressure tank

Controller Features

  • Digital display gives you a real time indication of system pressure
  • Anti-cycle Protection
  • Dry run protection with auto restart function that tests for water availability every 24hrs
  • Anti-seize function if pump has not operated for last 24 hours
  • Controller automatically restarts pump after a power failure
  • Easy assembly and removal using push-n-connect fitting with U clip
  • Complies to AS/NZ 4020 drinking water standard
  • Over pressure protection turns pump off when 10 bar is reached
  • Overload protection
Controller Modes

Two operational modes:

  • Mode One - Adjustable cut in pressure setting.

    Controller stops pump when flow drops.

  • Mode Two - Adjustable cut in and cut out pressure.

    Shut down governed by pressure. Requires pressure tank

You may also like

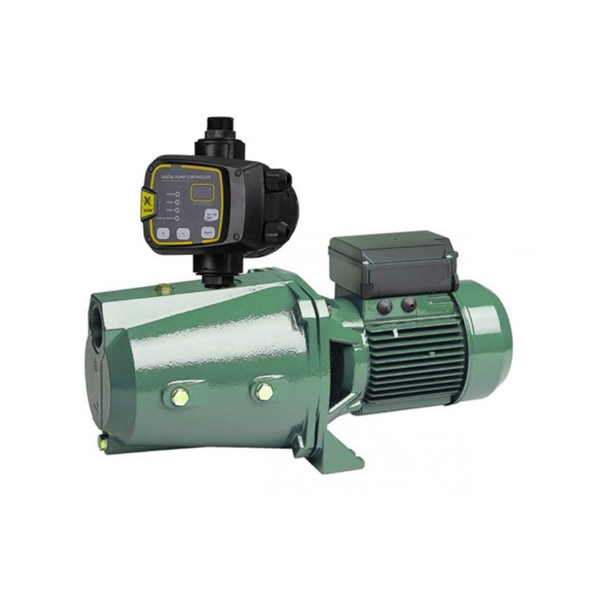

DAB 300NXTP Pro Shallow Well Pressure Pump with nXt PRO Pump Controller DAB 300NXTP Pro Shallow Well Pressure Pump with nXt PRO Pump Controller $1,995.00 DAB 200NXTP Pro Shallow Well Pressure Pump with nXt PRO Pump Controller DAB 200NXTP Pro Shallow Well Pressure Pump with nXt PRO Pump Controller $1,845.00 DAB 151NXTP Pro Shallow Well Pressure Pump with nXt PRO Pump Controller DAB 151NXTP Pro Shallow Well Pressure Pump with nXt PRO Pump Controller $1,795.00
