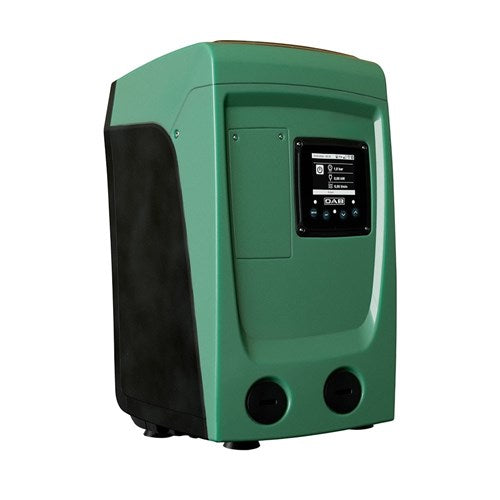

DAB Esybox Mini3 Variable Speed House Pressure Pump

• Energy efficient: variable speed technology uses 60% less power than traditional pumps, saving up to $220 per year.
• Remote monitoring & control: via the H2D app, track water and energy use, boost shower pressure or switch to sleep mode for quieter, more efficient operation.
• Quiet operation: at 43dB, it's quieter than a library and significantly quieter than traditional pressure pumps, so it won't disrupt your home.

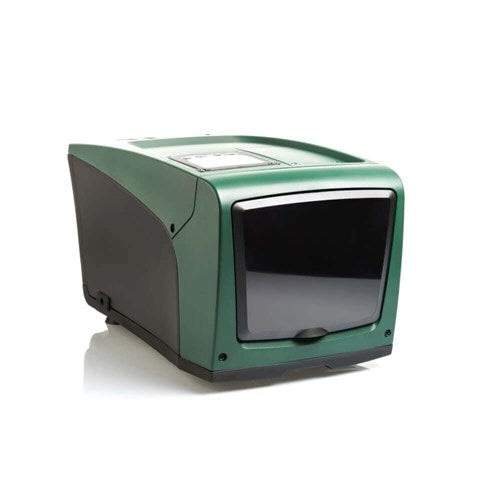

• Flexible mounting options: installs vertically or horizontally, indoors or outdoors, to suit almost any space.
• Latest 2025 V2 model: enhanced pump efficiency, improved wireless connectivity and full remote control via the H2D app.
• Italian-made quality: built to last, so you can set and forget without worrying about breakdowns or reliability issues.

Download DAB Esybox line brochure here

Home type

• Small homes with 1-2 bathrooms
• Single and multi-storey homes

Applications

• Water boosting
• Water purifying
• Gardening and irrigation
• Rainwater/ greywater reuse
• Hydroponics
• Hospitality and commercial use eg restaurants, cafes, bars and catering facilities

• Flow rate: up to 80 l/min
• Head: up to 55 m
• Liquid quality requirements: clean, free from solid or abrasive contaminants, non-viscous, non-aggressive, uncrystallised andchemically neutral.
• Liquid temperature range: from 0°C to +35°C for domestic use for other use: from 0°C to +40°C
• Maximum suction depth: 8 meters
• Maximum ambient temperature: +50°C
• Maximum operating pressure: 7,5 bar (750 kPa)
• Motor protection rating: IPX4
• Insulation class: F
• Installation: Horizontal or vertical fixed position
• Special executions on request: alternative types of electrical plug

Download data sheet here
Download the installation and operation guide here
