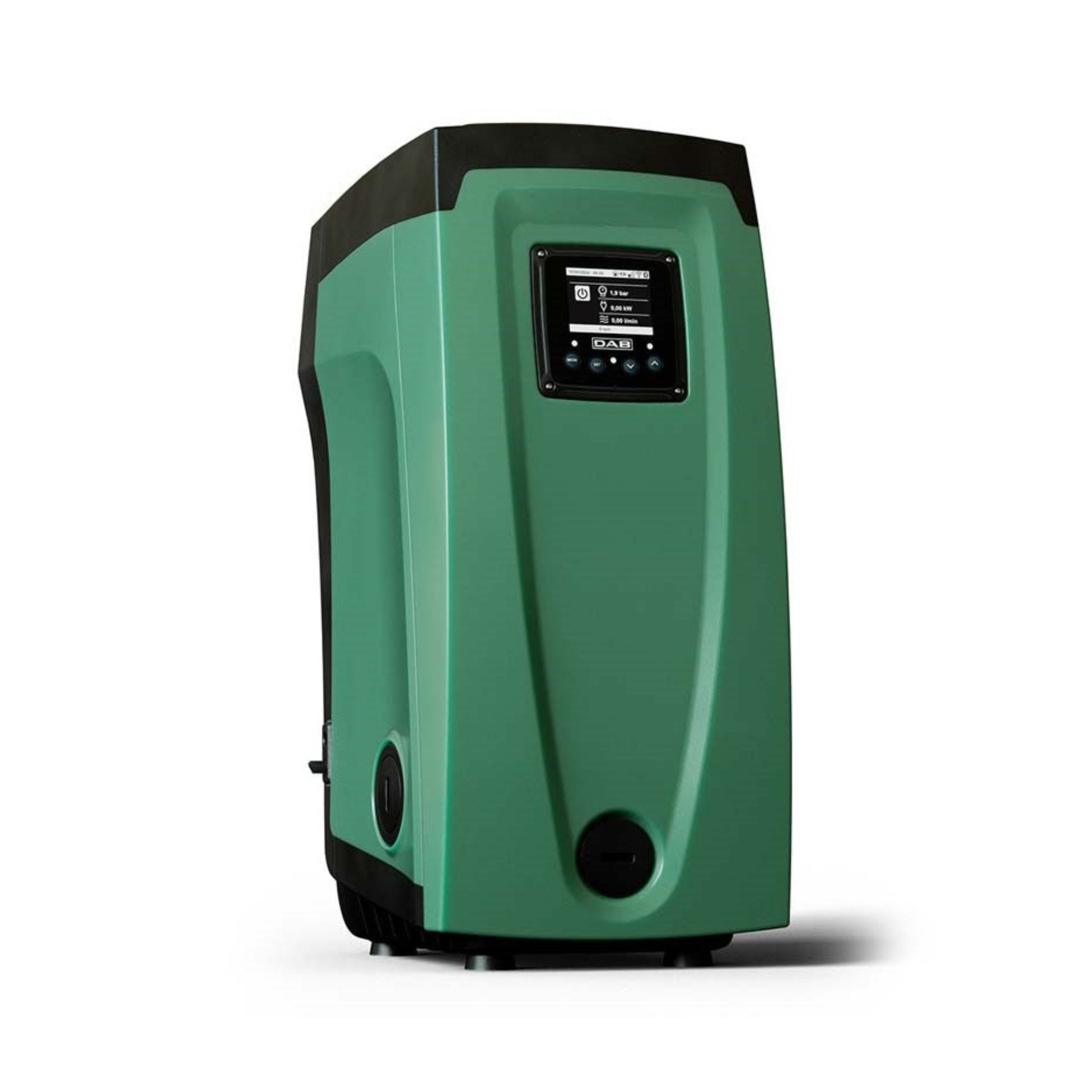

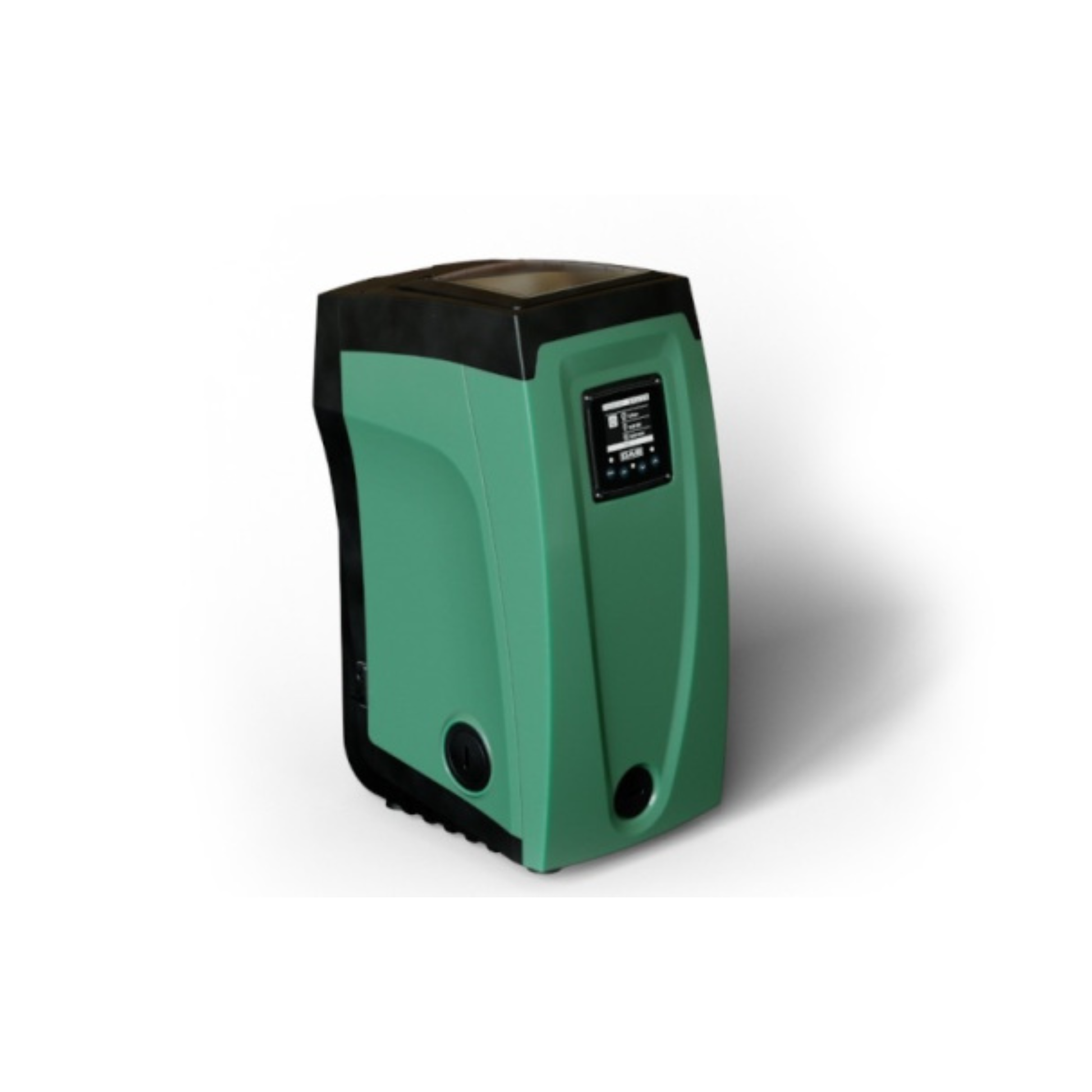

DAB Esybox Variable Speed House Pressure Pump

• Energy efficient: variable speed technology uses 60% less power than traditional pumps, saving up to $380 per year.
• Remote monitoring & control: via the H2D app, track water and energy use, boost shower pressure or switch to sleep mode for quieter, more efficient operation.
• Quiet operation: at 43dB, it's quieter than a library and significantly quieter than traditional pressure pumps, so it won't disrupt your home.

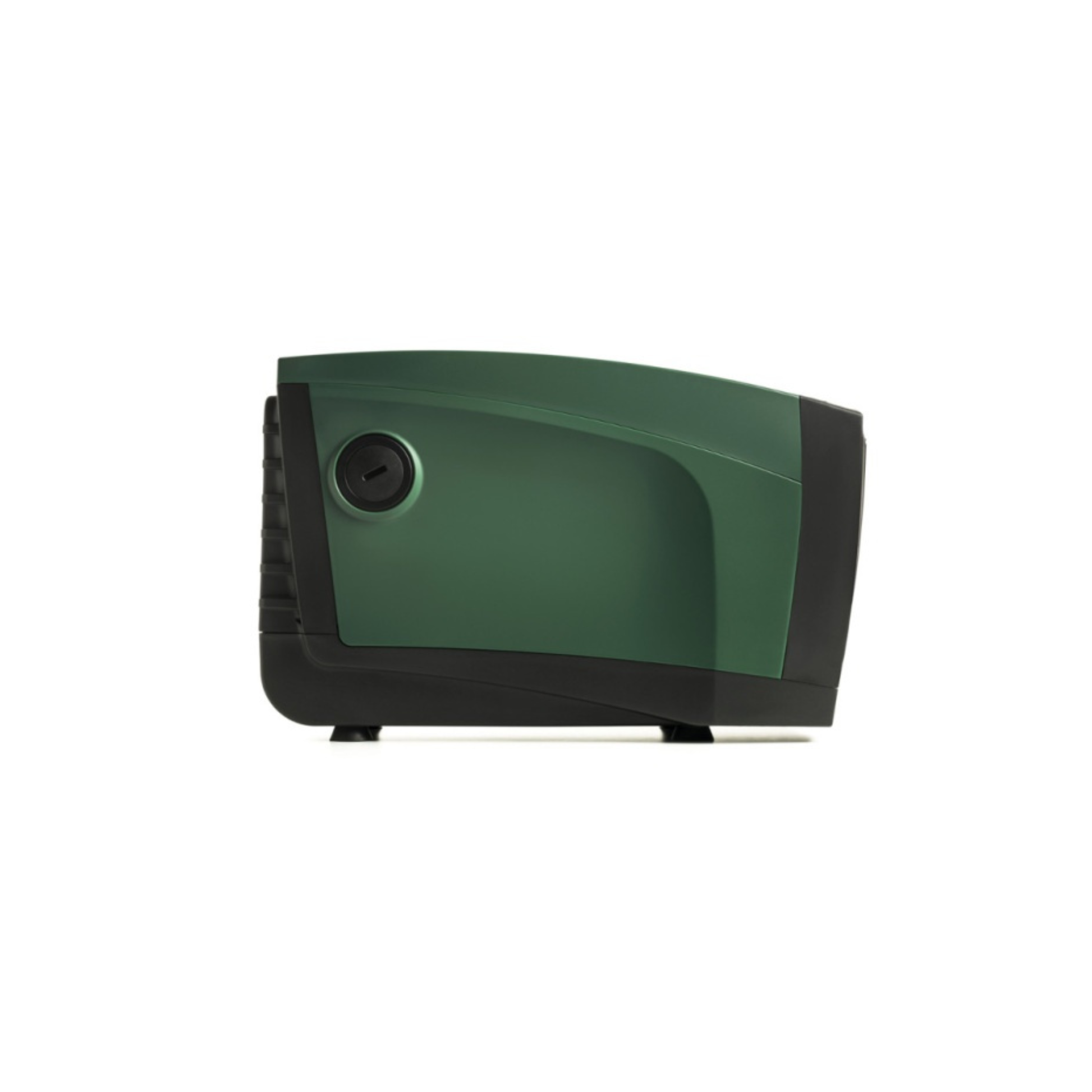

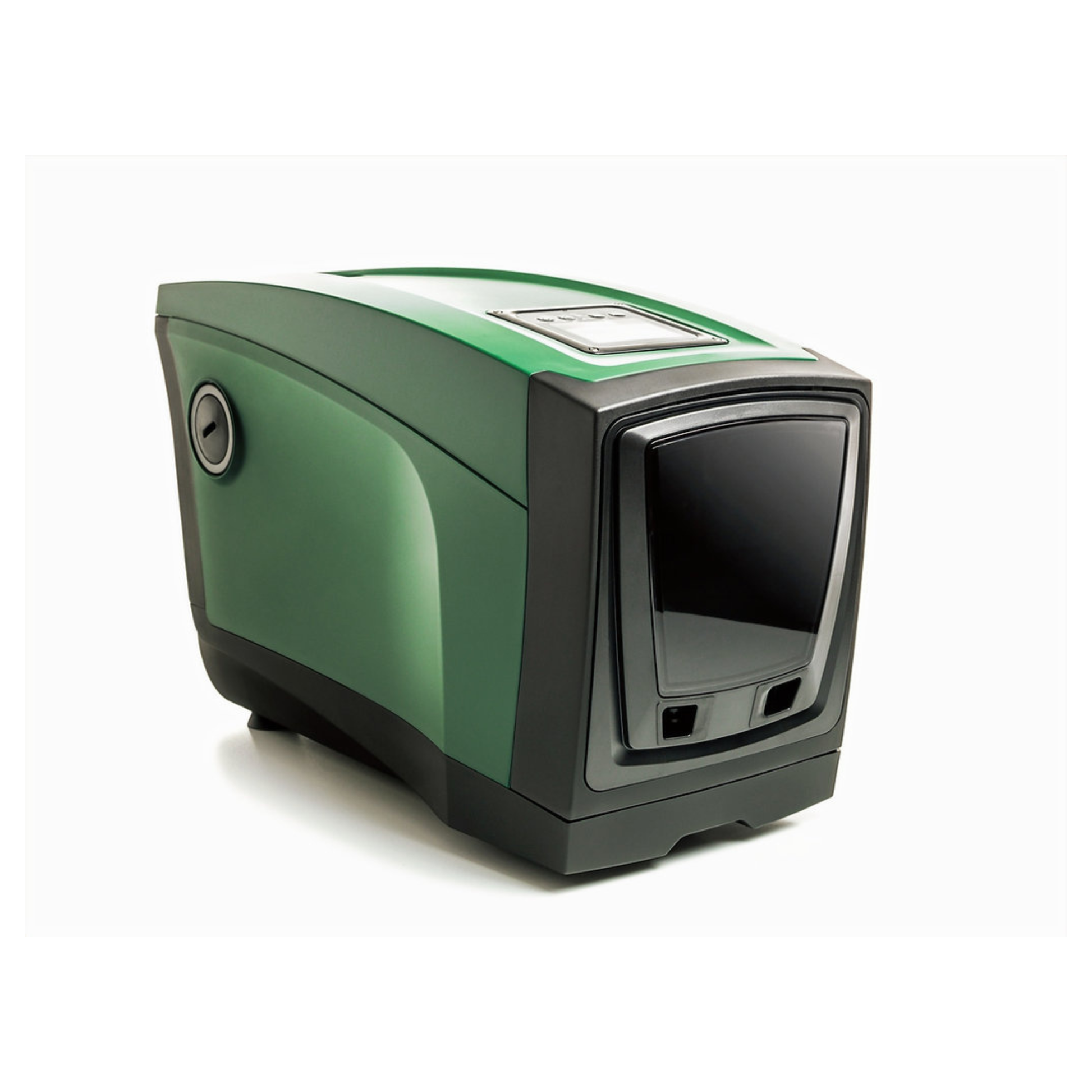

• Flexible mounting options: installs vertically or horizontally, indoors or outdoors, to suit almost any space.
• Latest 2025 V2 model: enhanced pump efficiency, improved wireless connectivity and full remote control via the H2D app.
• Italian-made quality: built to last, so you can set and forget without worrying about breakdowns or reliability issues.

  Download DAB Esybox line brochure here

Home type

• Medium to large homes with 2–4 bathrooms
• Single and multi-storey homes

Applications

• Water boosting
• Water purifying
• Gardening and irrigation
• Rainwater/ greywater reuse
• Hydroponics
• Hospitality and commercial use eg restaurants, cafes, bars and catering facilities

• Flow rate: Up to 120 lpm
• Head: 65 m
• Type of pumped liquid: Clean, free from solid or abrasive substances,non-viscous, non-aggressive, non-crystallised and chemically neutral
• Liquid temperature: +40°C
• Maximum ambient temperature: +50°C
• Maximum suction depth: 8 m
• Maximum operation pressure: 8 bar / 800 kPa
• Motor protection class: IP X4
• Motor insulation class: F
• Impeller material: Technopolymer
• Single phase power input: 230 V 50 HzPower cord (m) and plug: 1,5 meters with power plug

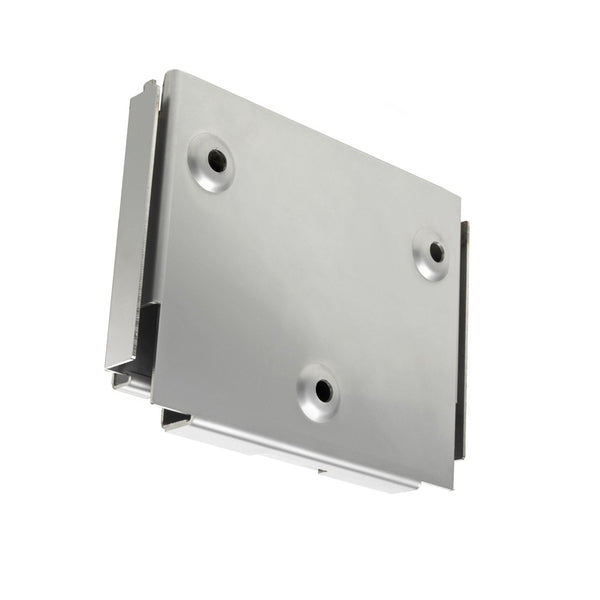

• Type of installation: Fixed, vertically, horizontally or on the wall withspecial accessories (supplied separately)
• Certification: WRAS, ACS

Download data sheet here
Download the installation and operation guide here
