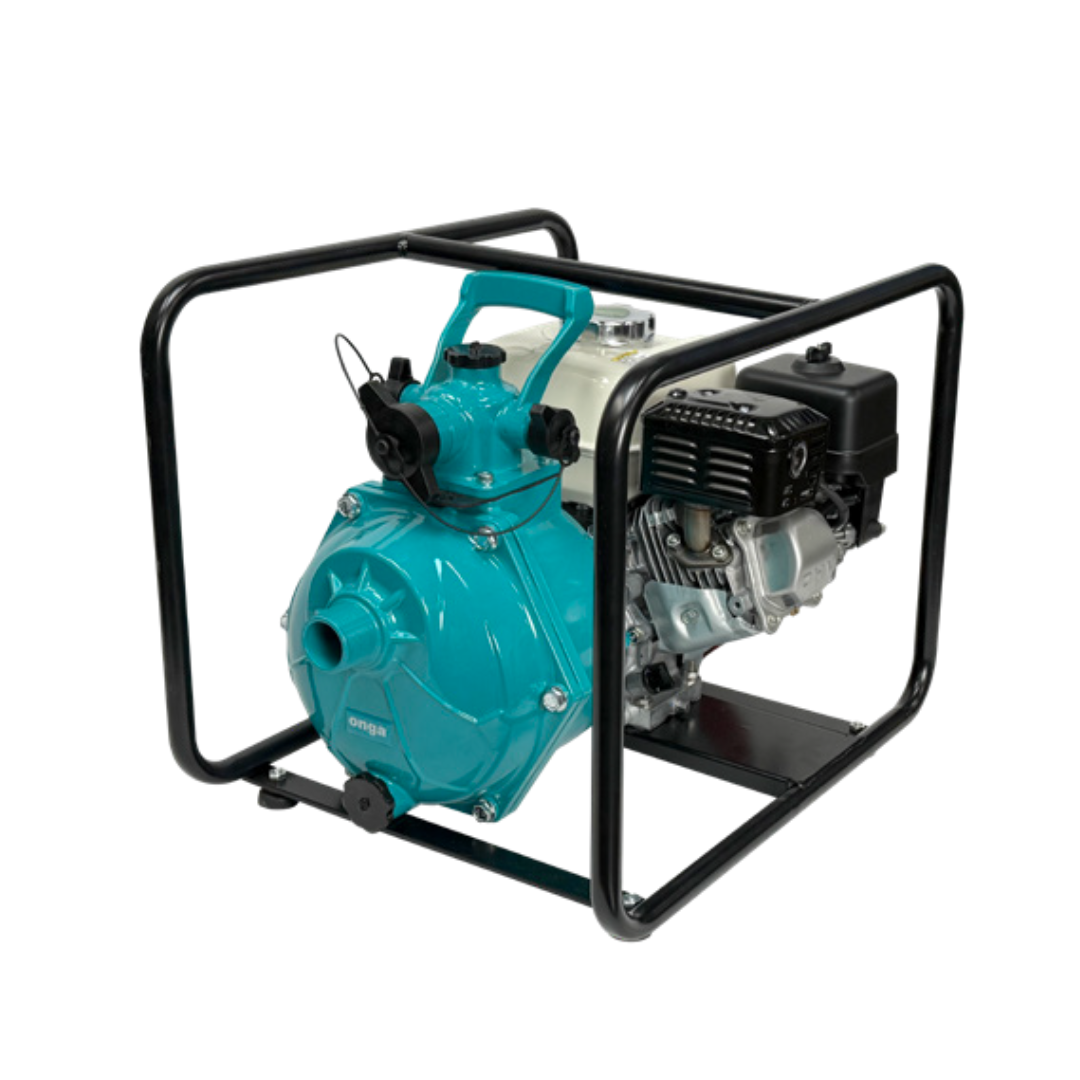

Onga B2-55HR BlazeMaster 2 - Single Impeller Firepump

Shipping calculated at checkout.

Product variants

In store now — Pakenham & Yarragon

Shop in store

Onga B2-55HR BlazeMaster 2 - Single Impeller Firepump

In store now — Pakenham & Yarragon

Shop in store

Pentair Onga
Made in Australia*
Honda engine

View full details

Blazemaster is renowned for performance and dependability when it matters most. Produced in Australia for over 20 years, today we continue the legacy in launching BlazeMaster 2. Blazemaster 2 features an all-new, precision optimised hydraulic design, developed by our in-house engineering team to deliver outstanding performance, greater versatility and superior construction.

Product brochure Data sheet Installation and/ or manual

Quality, Made in Australia pumps (pump end only)
Optimized hydraulic design delivers improved hydraulic efficiency and reduced fuel consumption
Constructed from durable marine grade aluminum for long service life and increased strength
Suction lifts to 8 m provides versatility in portable applications
Self-priming to 3.5 m for fast installation and operation
3-way discharge port with ergonomic integrated handle
Removable front cover allows easy access to service pump internals
1” drain port position allows all liquid to be removed for safer storage
Driven by reliable Honda petrol or Yanmar diesel engines

Fire fighting
Tank filling
Water transfer
Boom spraying
Irrigation.

Model: B2-55HR
Type: Single impeller, petrol engine-driven, roll frame
Engine: Honda GX160
Engine Displacement: 163cc
Nominal Power: 5.5 HP
Continuous Duty: 3000 RPM
Fuel Tank Capacity: 3.1 litres
Fuel Type: Unleaded
Recommended Oil: 10W/30 API SG
Oil Capacity: 0.6 litres
Maximum Suction Lift: 8 m
Maximum Operating Pressure: 13 bar
Maximum Liquid Temperature: 55°C
Maximum Ambient Temperature: 40°C
Pump Inlet: 1½" MI
Pump Outlets: 1½" x 1" x 1" MI
Weight: 27 kg
Dimensions (mm): 340 (A) x 200 (B) x 187 (C) x 279 (D) x 454 (E) x 435 (F) x 570 (G)
Construction: Marine-grade aluminium (CA605) pump casing, cover, impeller, diffuser & discharge
Mechanical Seal: Carbon/Ceramic
Motor Shaft: Mild steel
Finish: Powder coating
Made in Australia (pump end only)

Key features

Quality, Made in Australia pumps (pump end only)
Optimized hydraulic design delivers improved hydraulic efficiency and reduced fuel consumption
Constructed from durable marine grade aluminum for long service life and increased strength
Suction lifts to 8 m provides versatility in portable applications
Self-priming to 3.5 m for fast installation and operation
3-way discharge port with ergonomic integrated handle
Removable front cover allows easy access to service pump internals
1” drain port position allows all liquid to be removed for safer storage
Driven by reliable Honda petrol or Yanmar diesel engines

Applications

Fire fighting
Tank filling
Water transfer
Boom spraying
Irrigation.

Specifications

Model: B2-55HR
Type: Single impeller, petrol engine-driven, roll frame
Engine: Honda GX160
Engine Displacement: 163cc
Nominal Power: 5.5 HP
Continuous Duty: 3000 RPM
Fuel Tank Capacity: 3.1 litres
Fuel Type: Unleaded
Recommended Oil: 10W/30 API SG
Oil Capacity: 0.6 litres
Maximum Suction Lift: 8 m
Maximum Operating Pressure: 13 bar
Maximum Liquid Temperature: 55°C
Maximum Ambient Temperature: 40°C
Pump Inlet: 1½" MI
Pump Outlets: 1½" x 1" x 1" MI
Weight: 27 kg
Dimensions (mm): 340 (A) x 200 (B) x 187 (C) x 279 (D) x 454 (E) x 435 (F) x 570 (G)
Construction: Marine-grade aluminium (CA605) pump casing, cover, impeller, diffuser & discharge
Mechanical Seal: Carbon/Ceramic
Motor Shaft: Mild steel
Finish: Powder coating
Made in Australia (pump end only)

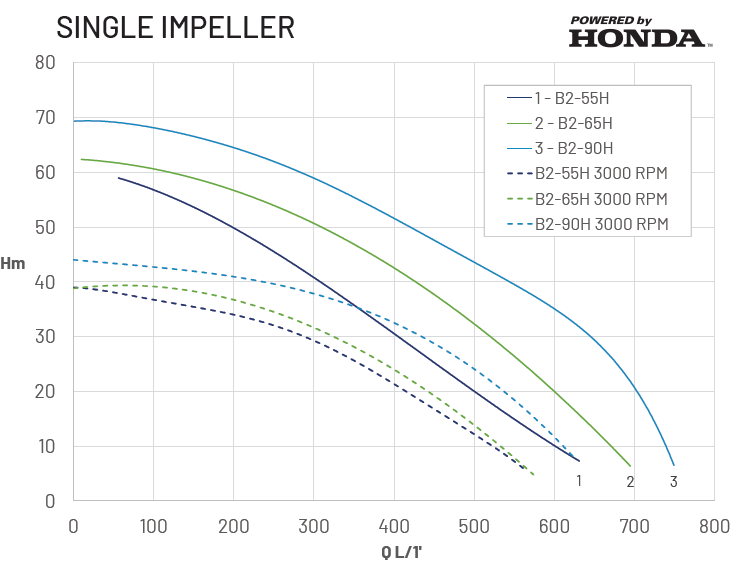

Performance chart
