Mono Solar-Powered Submersible Full Water Pump System | 285W single panel, 35m - 80m head max

Mono Solar-Powered Submersible Full Water Pump System | 285W single panel, 35m - 80m head max

Prices starting from $7,800.00
Call our team for a custom quote
Enquire now
Mono Solar-Powered Submersible Full Water Pump System | 285W single panel, 35m - 80m head max
Mono Solar-Powered Submersible Full Water Pump System | 285W single panel, 35m - 80m head max
In store now — Pakenham & Yarragon
Enquire now
  • Mono Pumps
  • Made in Australia
  • Up to 3 year warranty*

View full details

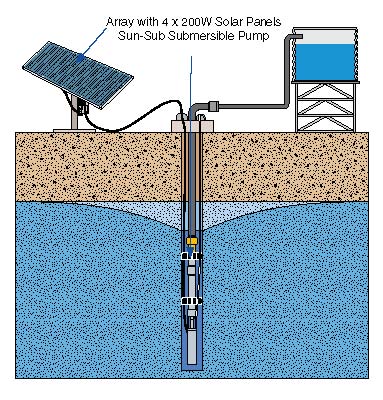

The Mono SUN-SUB submersible pump system is a solar-powered system designed to efficiently and reliably transfer water from bores, springs, rivers, tanks and dams. The System draws energy from the suna d is completely self-contained, eliminating the need for diesel fuel or AC power. Components are low maintainance, design for use in solar-powered pumping systems and highly effcient to maximise water output. Supplied as a complete package, the SUN-SUB system is easy to install and use.

  • No fuel or electricity costs, connections or maintenance
  • Complete plug-and-play pump system
  • Customisable to suit your unique application
  • Easily automated using a float switch, pressure kit or built in electronic pressure control

Solar array

  • Range of output power, from 285 Watts to 2565 Watts
  • Stationary post
  • Designed to withstand 140 km/hr winds

Solar motor controller

  • Variable speed control for easy regulation of pump flow, ideal for low-yield bores
  • Automatic pump shutdown once tanks and troughs are full
  • Thermal overload protection feature
  • Low motor speed cut-off to reduce pump and motor wear
  • Wasily accessible on/off switch and MonoVue App diagnostics compatible via Bluetooth

Brushless DC submersible motor

  • Purpose built for solar pumps
  • High torque, high efficiency, brushless and sensorless DC submersible motor for coupling to the submersible pump
  • No on-going maintenance required, as there is no sensor for rotor position or brushes.
  • Manufactured with 316 stainless steel, fully sealed and filled out with environmentally friendly oil
  • Seal, permanent magnet rotor supported by rolling element bearings.

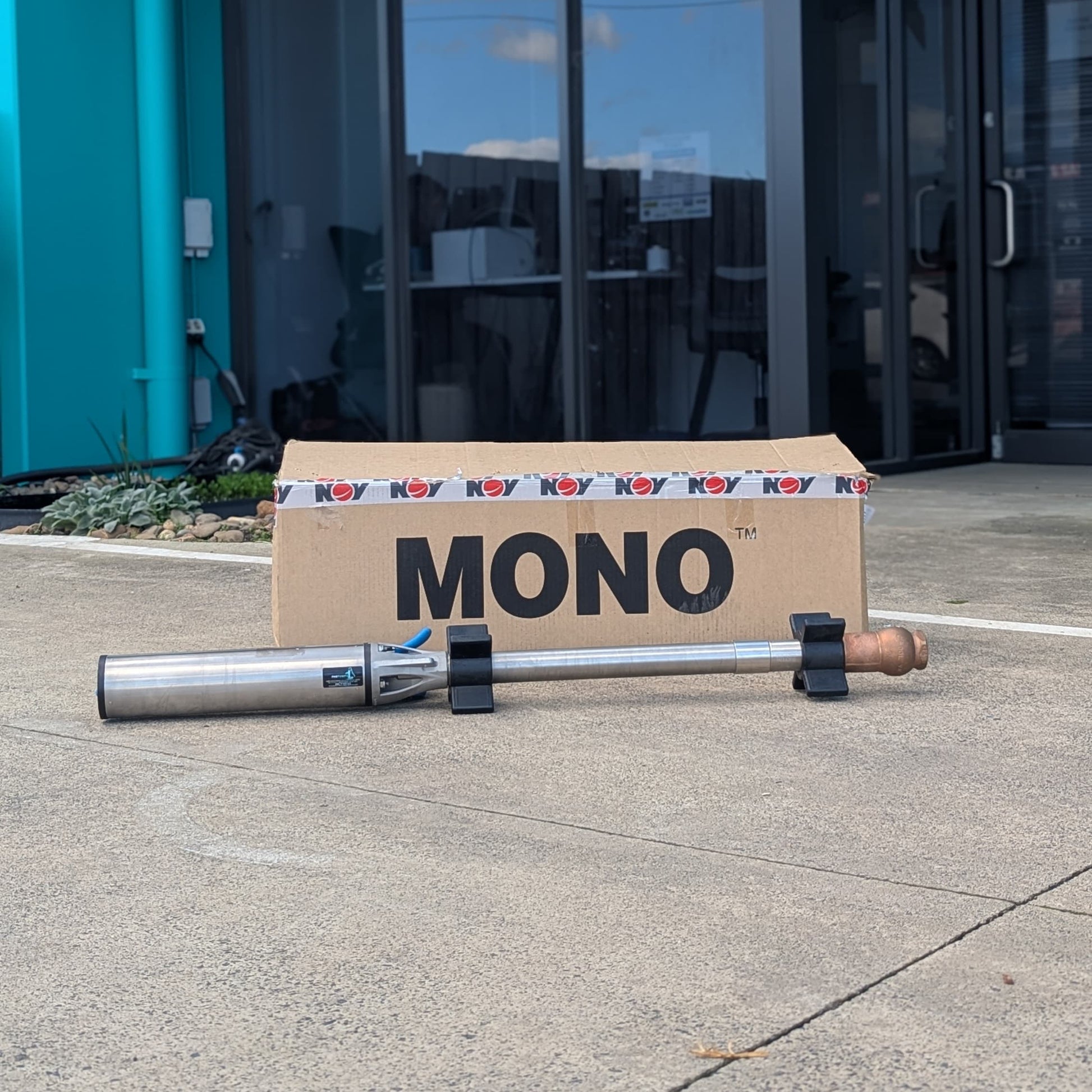

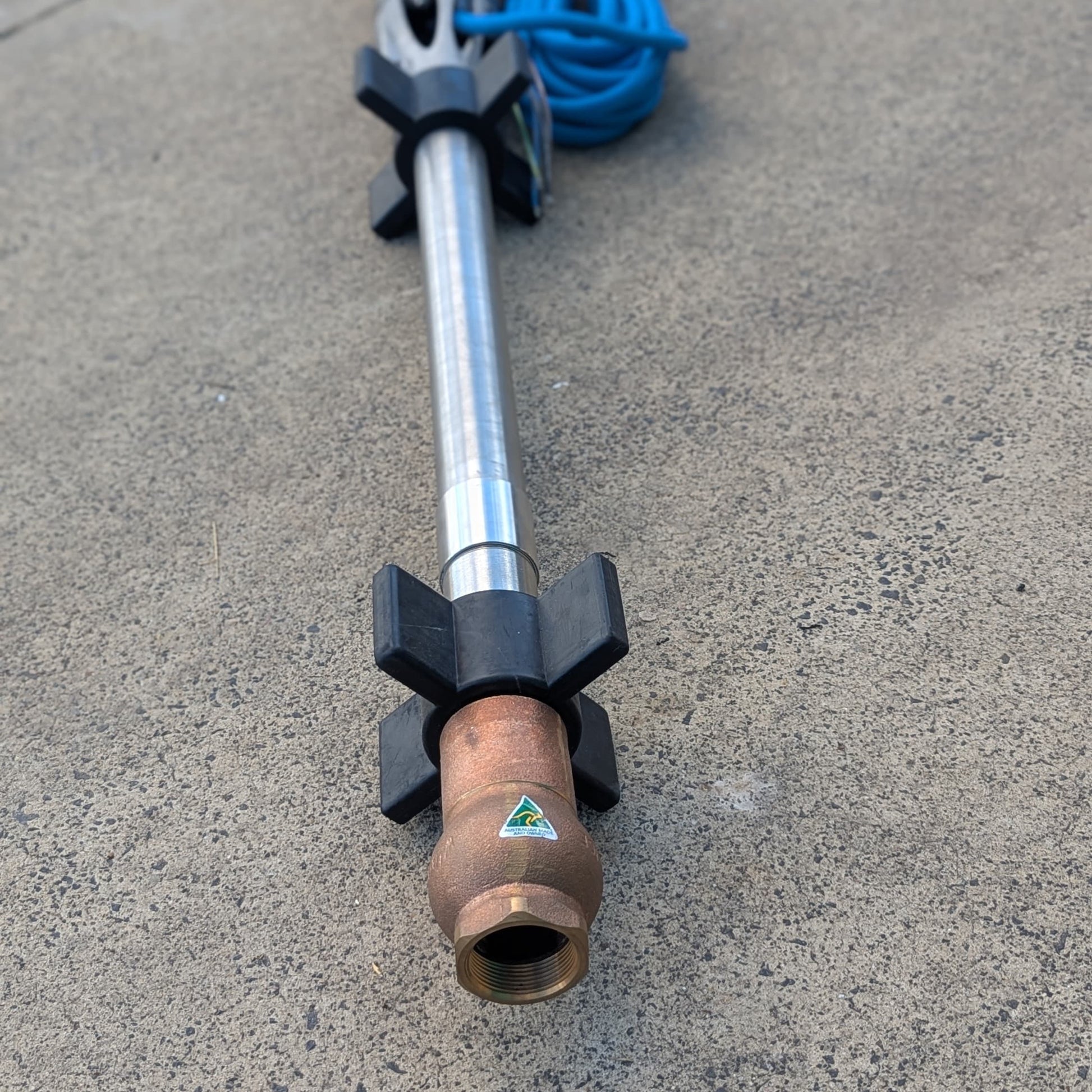

Subrotor pump, wet end

  • Helical rotor pump provides maximum water output even when the water contains silt or iron oxide
  • Low pump speed means extended rotor and stator life in abrasive bores
  • High operating efficiency of pump and SMC ensures maximum amount of water can be pumps over the day and during cloudy conditions

2 year warranty on the pump, but 3 year warranty if purchased in the complete system
