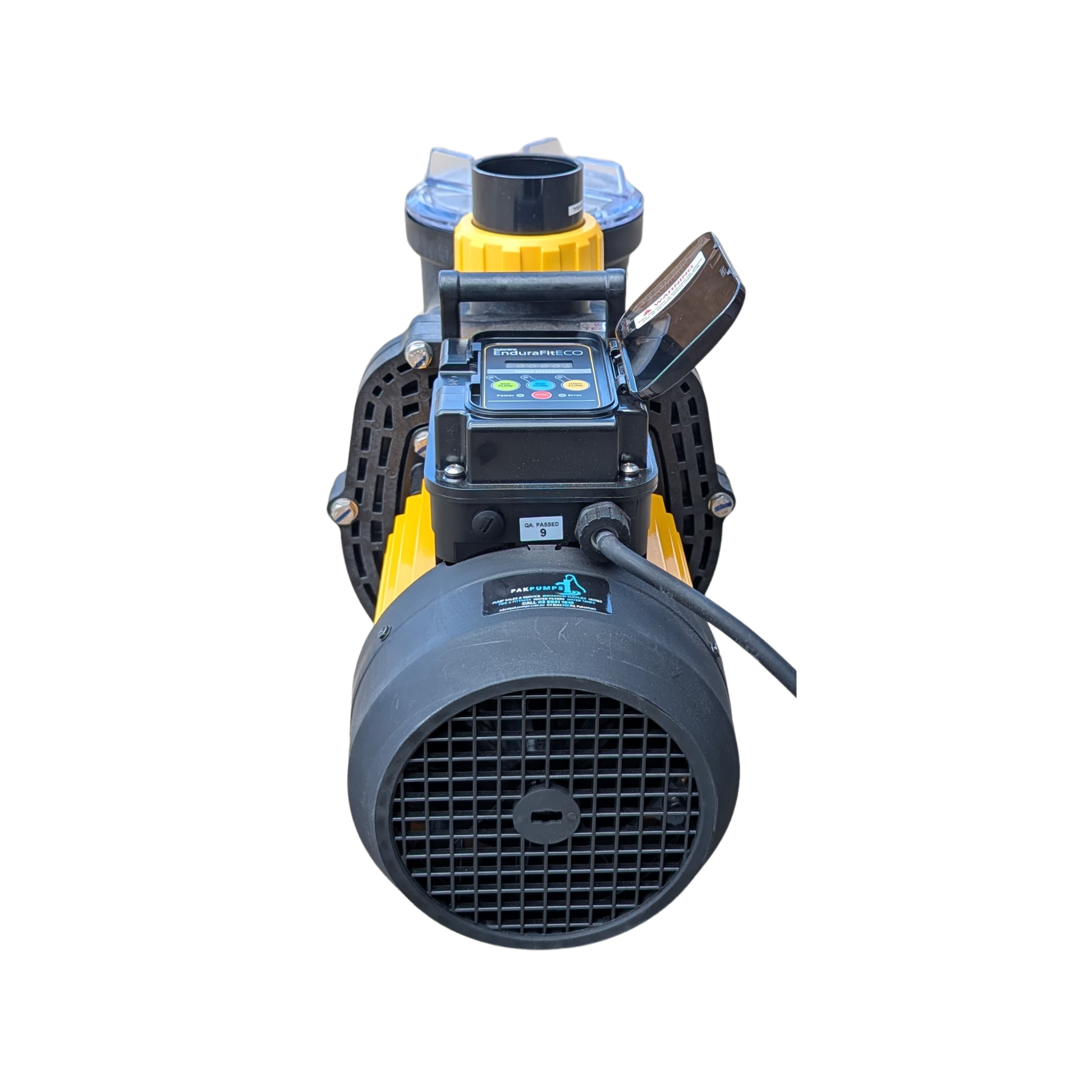

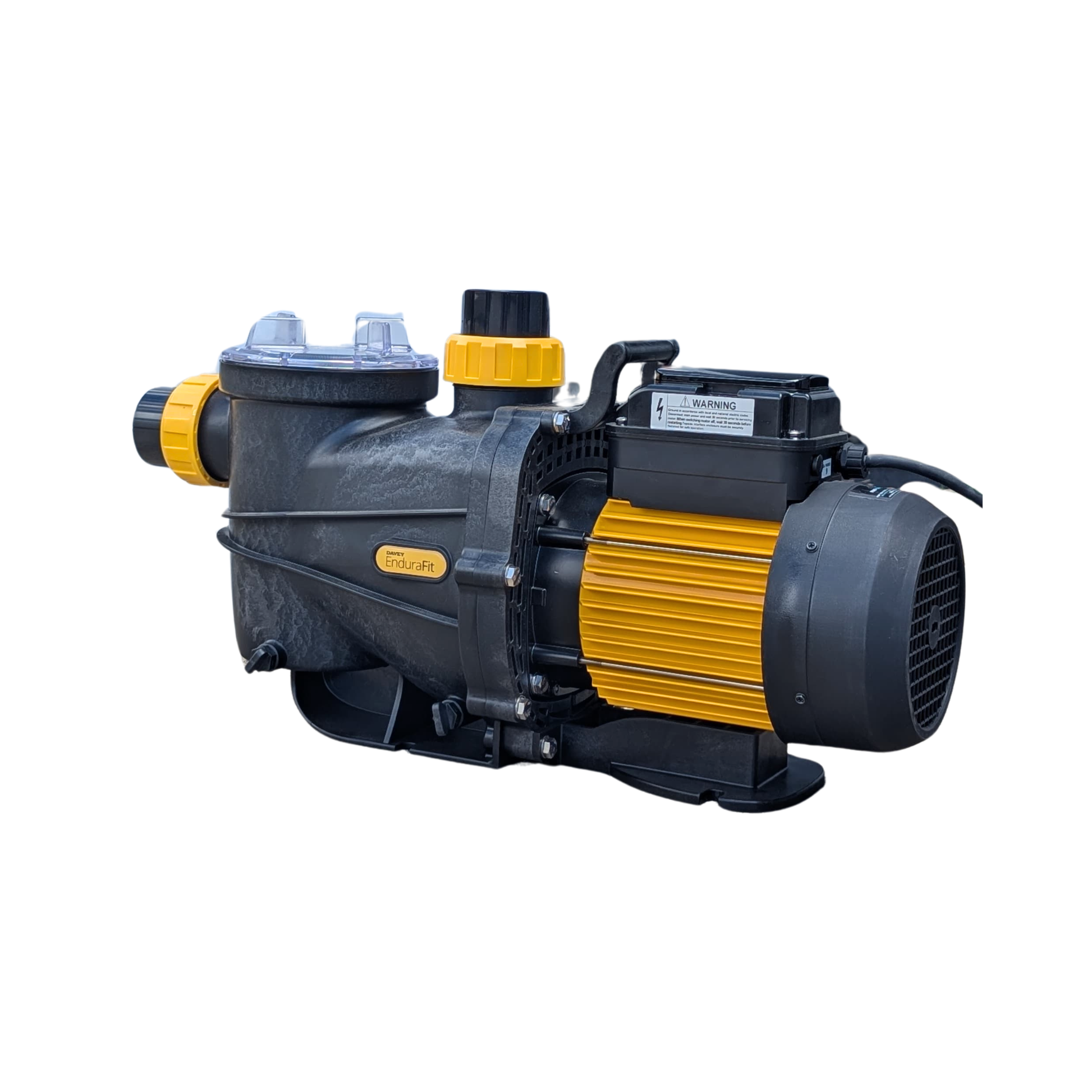

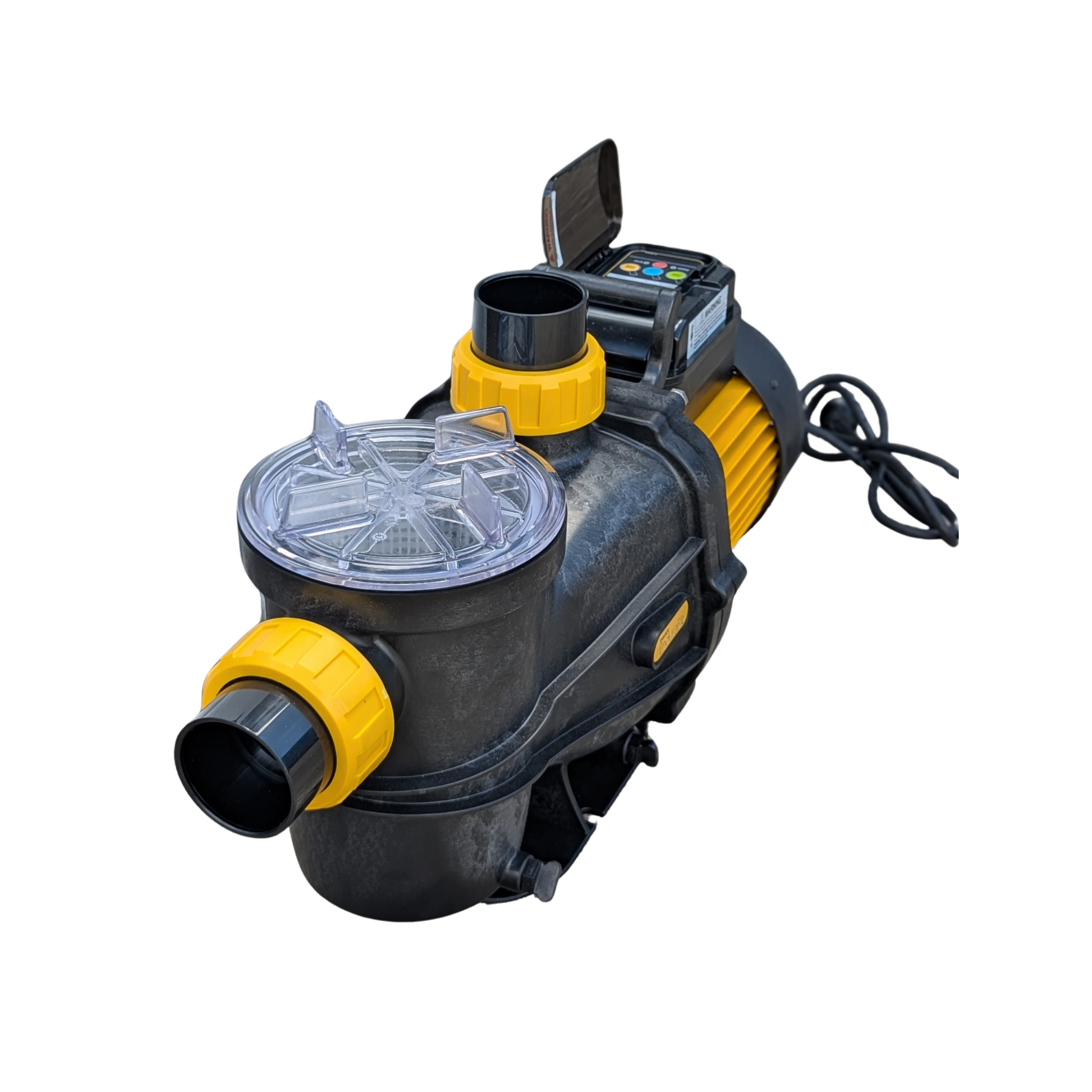

Davey DEFE385 EnduraFit ECO Pool Pump 1.5hp variable speed

• Three programmable speeds: ECO Flow (1900rpm), Mid Flow (2400rpm), High Flow (2850rpm) for automatic efficiency optimisation
• Smart Motor Protection prevents water ingress and motor damage
• Auto-reset thermal overload protection for complete motor safety
• Heavy-duty pump body with insulation reduces noise and vibration
• Universal fit design retrofits wide variety of existing installations
• 50mm ABS quick coupling barrel unions for easy connection
• High-grade 316 stainless steel mechanical seal for long service life
• Efficient impeller and diffuser for improved head and flow performance
• Large, easy-to-remove see-through lid with oversized leaf basket
• 5-star energy efficiency rating saves up to 60% on electricity costs

✓ Swim spas, plunge pools and residential pools up to 93,000 litres
✓Pools requiring filtration, spa jets, heating and in-floor cleaning systems
✓ Multiple simultaneous pool functions with programmable speed control
✓ Energy-conscious pool owners wanting to reduce electricity bills
✓ Upgrading from noisy, inefficient single-speed pumps
✓ Installations requiring quieter operation near living areas

Performance

• Model: DEFE385
• Flow Rate (High Flow): Up to 450 lpm
• Maximum Head (High Flow): 18m
• Maximum Head (Mid Flow): 13m
• Maximum Head (ECO Flow): 8m
• Speed Range: 1900rpm (ECO) / 2400rpm (Mid) / 2850rpm (High)
• Pool Capacity: Up to 93,000 litres

Electrical

• Voltage: 220-240V AC
• Frequency: 50Hz
• Run Current: 9.0A
• Input Power: ECO 0.45kW (0.6hp) | Mid 0.85kW (1.15hp) | High 1.42kW (1.93hp)
• Output Power: ECO 0.36kW (0.48hp) | Mid 0.68kW (0.92hp) | High 1.15kW (1.5hp)
• Enclosure Rating: IPX5
• Insulation Class: F

Construction

• Pump Body: Heavy-duty ABS with 50mm quick coupling barrel unions
• Impeller & Diffuser: Optimised design for improved flow
• Mechanical Seal: 316 stainless steel for corrosion resistance
• Strainer Basket: Large capacity, see-through lid

Physical

• Dimensions (L×W×H): 657mm × 319mm × 253mm
• Mounting Holes: Ø9mm, 132mm front / 120mm rear spacing
• Inlet/Outlet: 50mm PVC
• Net Weight: 15.5kg

Operating Limits

• Maximum Water Temperature: 45°C
• Maximum Ambient Temperature: 50°C
• Maximum Casing Pressure: 350kPa

Warranty

• 3 years* (see Installation & Operating Instructions for full details)

Energy Rating

• 5-star energy efficiency rating on both ECO and Mid Flow modes
